COMPUTER TENSION MACHINE WITH CONTOLLER : CTMC1/12
COMPUTER TENSION MACHINE WITH CONTROLLER
MODEL NO. CTMC1/12
Computerized tension & controlling for circular saw blade possible diameter range is from 100-1200mm.
Control checking side run-out & tensioning at the same spindle using powerful software(TENDIEX) & encoder.

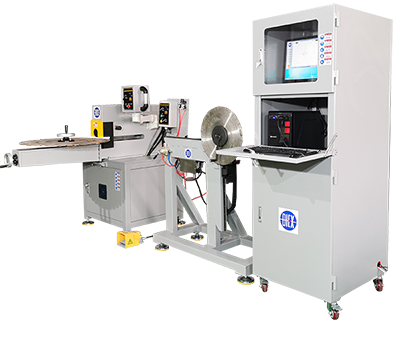

A Type

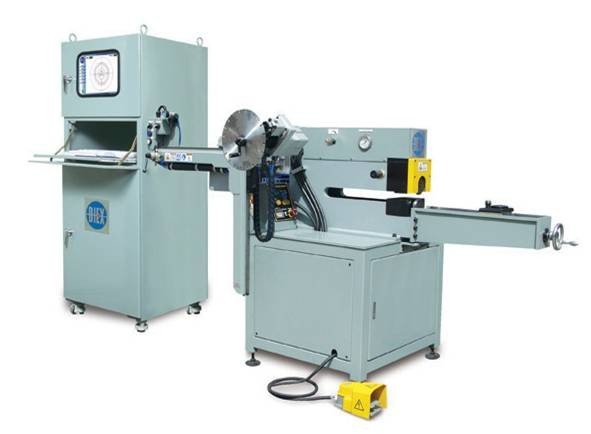

D Type
MACHINE FEATURES
- Adjustable rolling pressure
- Pedal.switch rotation control with automatic approaching of pressing rolls.
- Adjustable speed change of pressing roll rotation rotation of pressing rolls.
- The table with a control spindle mounted on precision bearings with different diameter of flanges
- A pneumatic cylinder piston with adjustable unidirectional thrust slide on vertical
guide moving together with detecting sensor on horizontal guide.
- Automatic steel core locking system by pneumatic cylinder.
- It consists of bench mounted on precision bearing with precision flange, encoder data acqusition box,
control cabinet ,tension rolling machine
- Non contact linear sensor able to check deflection & tension.
- Fully computerized system allows creating & visualizing tension & deviation by real time data acqusition.
- All technical data of tension & control could be stored on hard disk & print out as report form to make Q.A.
TECHNICAL DATA
* MODEL NO: CTMC1/12
* MAX. POWER CONSUMPTION: 4KVA
* ROLL ROTATION SPEED: 1~10 m/min(ADJUSTABLE & VARIABLE)
* PRESSURE FORCE (ADJUSTABLE): FROM 100 TO 2.700KG
* STANDARD ROLLERS CAMBER: 40 RADIUS
* ROLLES DIAMETER: 95MM
* Main Spindel Diamter: 20mm
* TENSIONING BLADE DIAMETER: 100MM to 1,200MM
* CONTROLLING BLADE DIAMETER: 200MM to 1,200MM (SIDE RUN-OUT & TENSIONING CHECK)
* AIR CONSUMPTION: 5L/MIN.
* OVERALL DIMENSIONLENGTH: 1,800xW1,000x!,350mm
* WEIGHT(INDICATIVE): APPROX. 900 Kg
NOTE
This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
