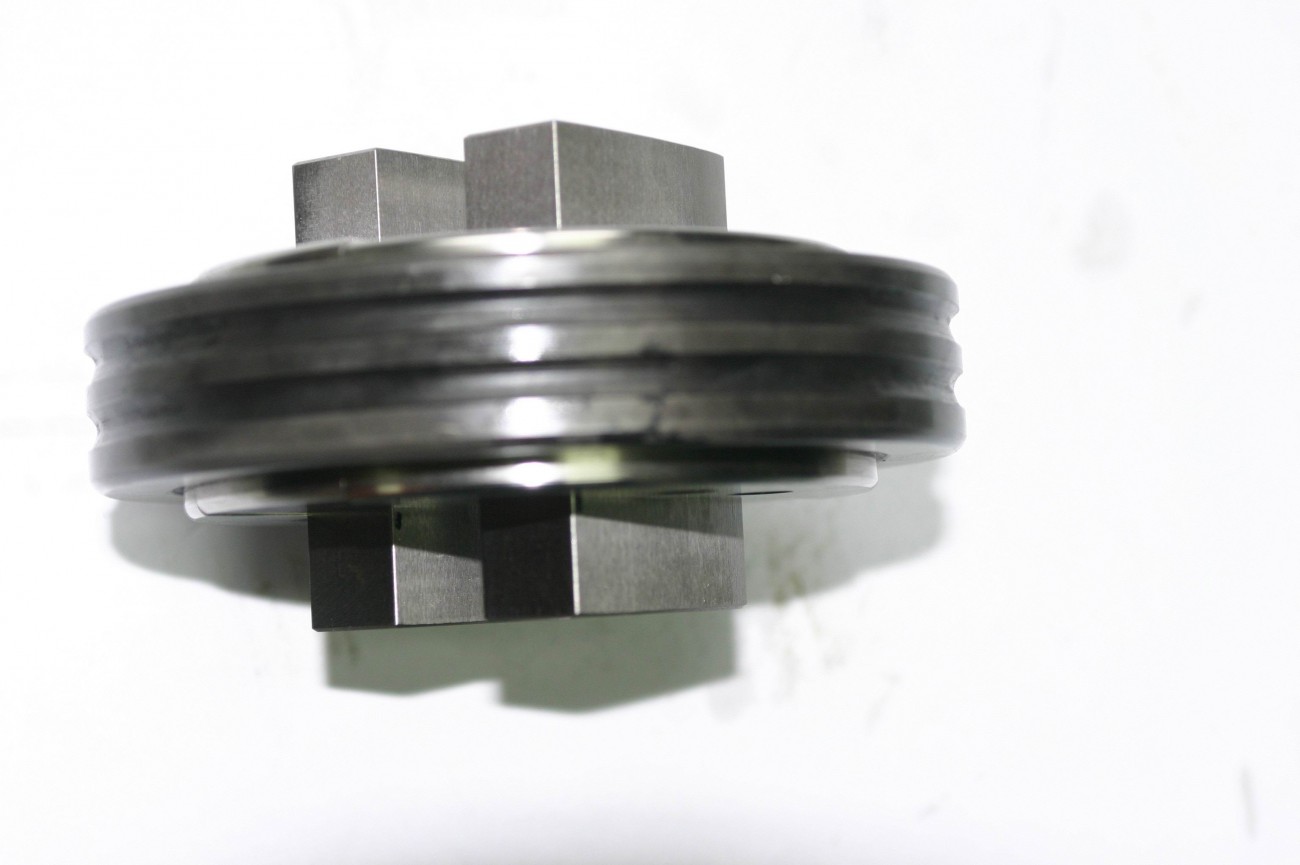

AUTO DIAMOND ARRAY ROTARY VOLUMETRIC COLD PRESS MODEL: R4
The diamond can uniformly be arrayed by vacuum suction, and filling powder by volumetric way using granule powder. 4 molds at 4 stations to rotate, fill, and array ,prepressing ,pressing to increase productivity
AUTO DIAMOND ARRAY ROTOPRESS MODEL NO. R4
NEWLY DESIGNED & PATENT PENDING******
MACHINE FEATURES
* Fills the powder and automatically array the diamonds by volumetric way.
* evenly arrays diamond by vacuum suction.
* cross-arrayed two different sizes of diamonds;
* produce laser welding segments with filling two different powders.
* increase production efficiency with rotary filling and array system;
* prevent diamonds from changing position by pre-pressing diamonds.
* The press can achieve an exact equal pressure from up/bottom by using special floating press.
* reduce workload by automatic array system of finished segments
TECHNICAL DATA
- Model: R4
- Power Supply: 380V, 3P, 50/60 Hz
- Max. Electricity Consumption: 40KW
- Air consumption: 0.4~0.6MPa, 3L/min
- Maximum Pressure: 60T
- Working Stations: 4 (four) stations
- Max. Filling LayerS: Powder: 15 layers, Diamond: 14 Layers
- Max. No. of segment /mold: 4 Segments (Based on 40L×15H segments)
- Productivity(Approx.): 1,200 seg/8Hrs (Based on 7 diamond layers)
- Dimensions: Machine:1600L×2300W×2250H (mm)
Electric Cabinet: 940L×610W×2100H (mm)
Hydraulic Unit: 1100L×1100W×1000H (mm)
- Weight: Approx. 2,500kg
PROCESS
1. STEP
Make volume & pre pressing
2. STEP
Powder Feeding
3. STEP
Diamond Array
4. STEP
Pressing & Seg. Take Out
NOTE
This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
