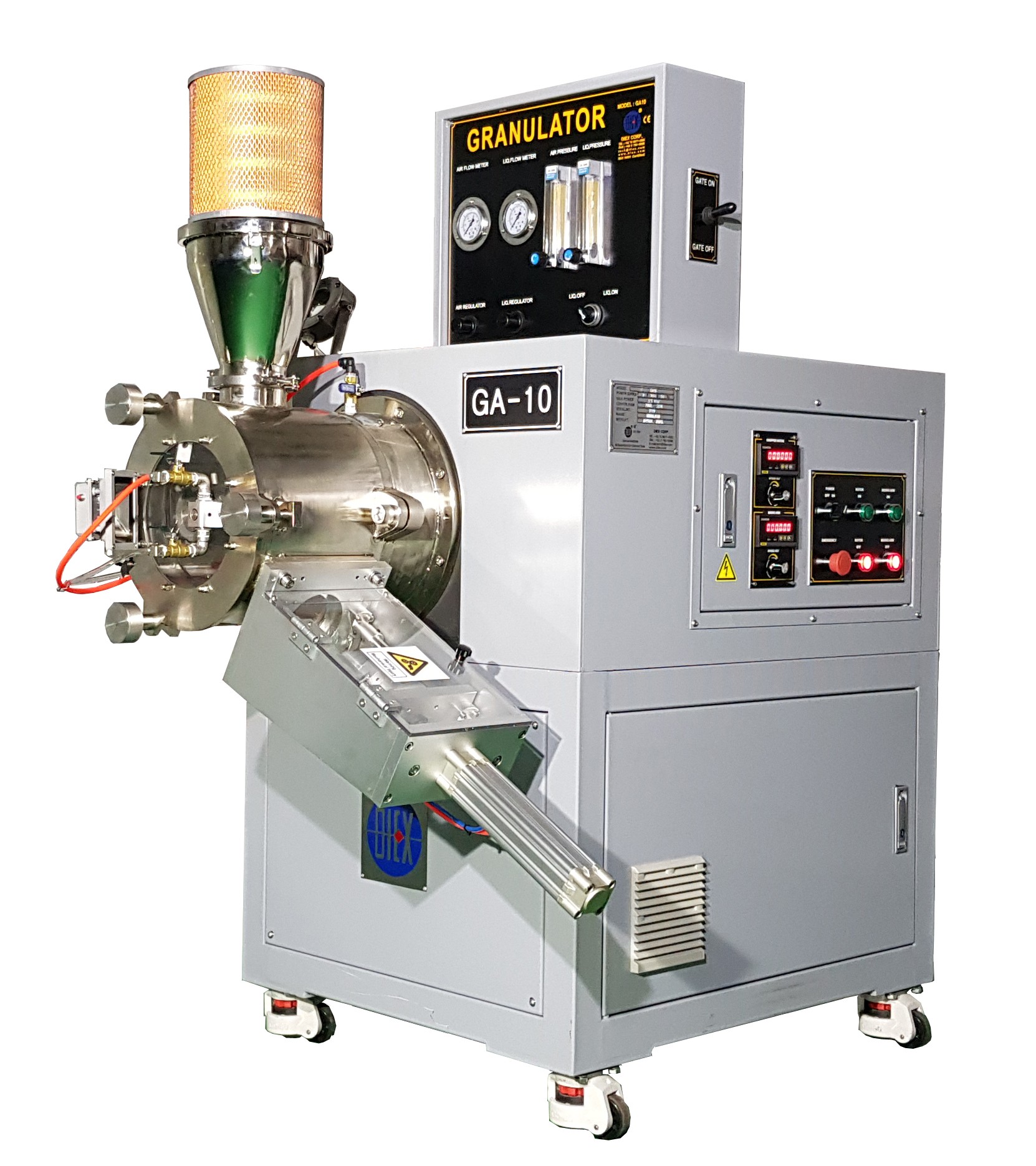

AUTO POWDER GRANULATOR : GA10A
Very specially designed to granulate metal powder to obtain regular spherical shapes of granulated powder which has high fluidity for volumetric weighing of segments to be cold pressed ,by program with parameters with touch screen. All most every bond are possible to be granulated! High speed chopper & mixing arm rotation makes very round shape of granulation powder ,while competitors have no such a good shape as method of granulation is totally different from DIEX. This machine will give very good influence of powder granulation without operator near by machine ,not expose IPA smell which is very good for health!
AUTO POWDER GRANULATOR (MODEL:GA10A)
MACHINE FEATURES
* The entire granulation process realizes automatic granulation, automatic liquid injection,
* Automatic powder discharge, and automatic stop.
* Control spray and liquid flow rate with air proportional valve. Controllable in 3 stages.
* Precisely controls liquid volume with a high-precision liquid flow meter.
* CORRECT SIZE DISTRIBUTION WITH SHEPHERICAL SHAPE AND FLUDITY.
* HIGH YIELD (yield ratio can reach 95% more based on particle size 0.1-0.5mm )
* IT IS POSSIBLE TO ADJUST DIAMETER OF GRANULE.
TECHNICAL DATA
* POWER SUPPLY 220/380V , 3P, 50/60Hz
(DEFFERENT VOLTAGE AND FREQUENCIES ON REQUEST)
* MAX.POWER CONSUMPTION3.5 KW
* WORKING CAPACITY30~50Kg/Hour, 10~12Kg/Batch (Cobalt)
* TOTAL VOLUME13.5 Liters
* OVERALL DIMENSIONS1200L×1400L×1620H (mm)
* WEIGHTAPPROX. 600KG

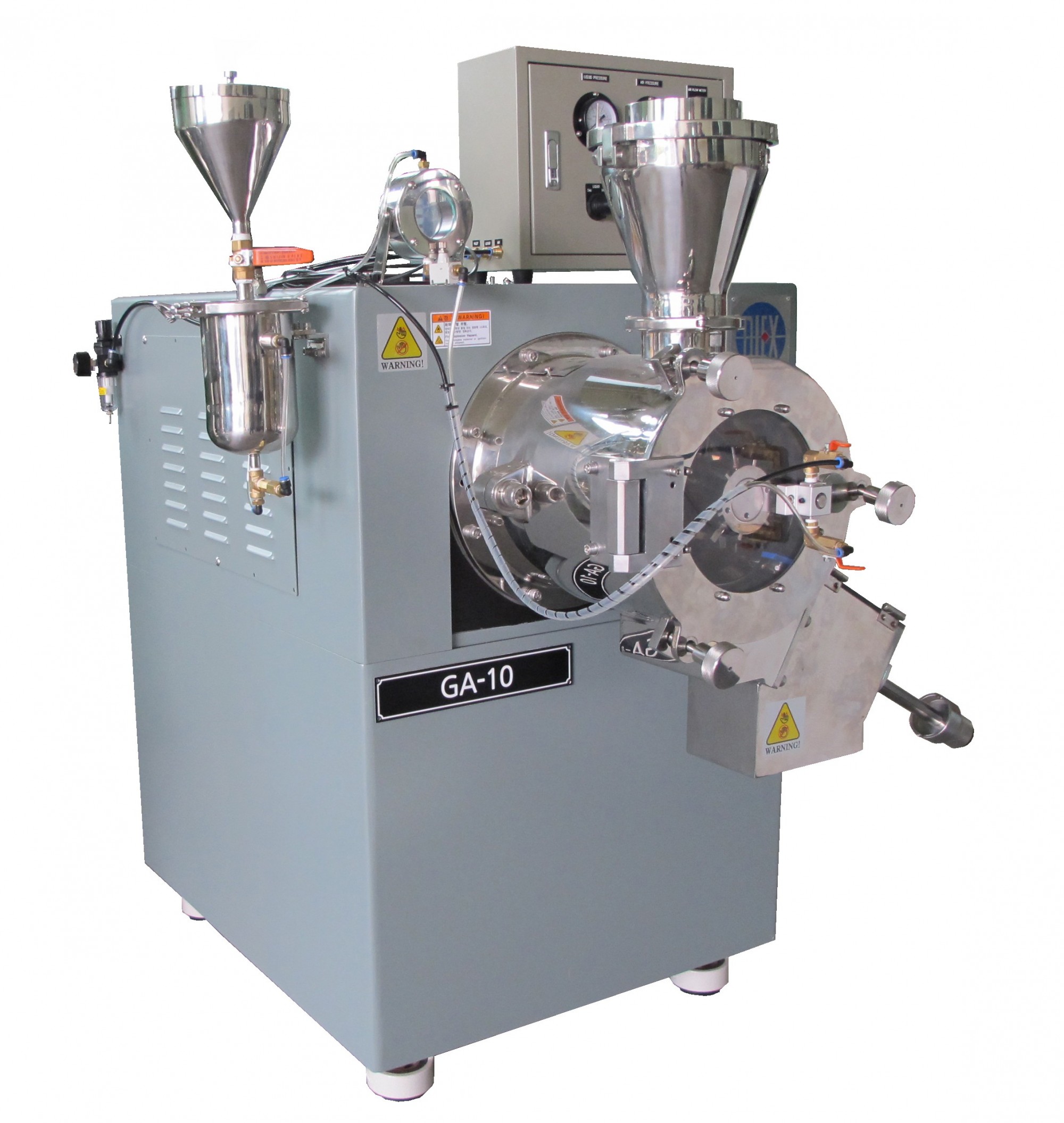

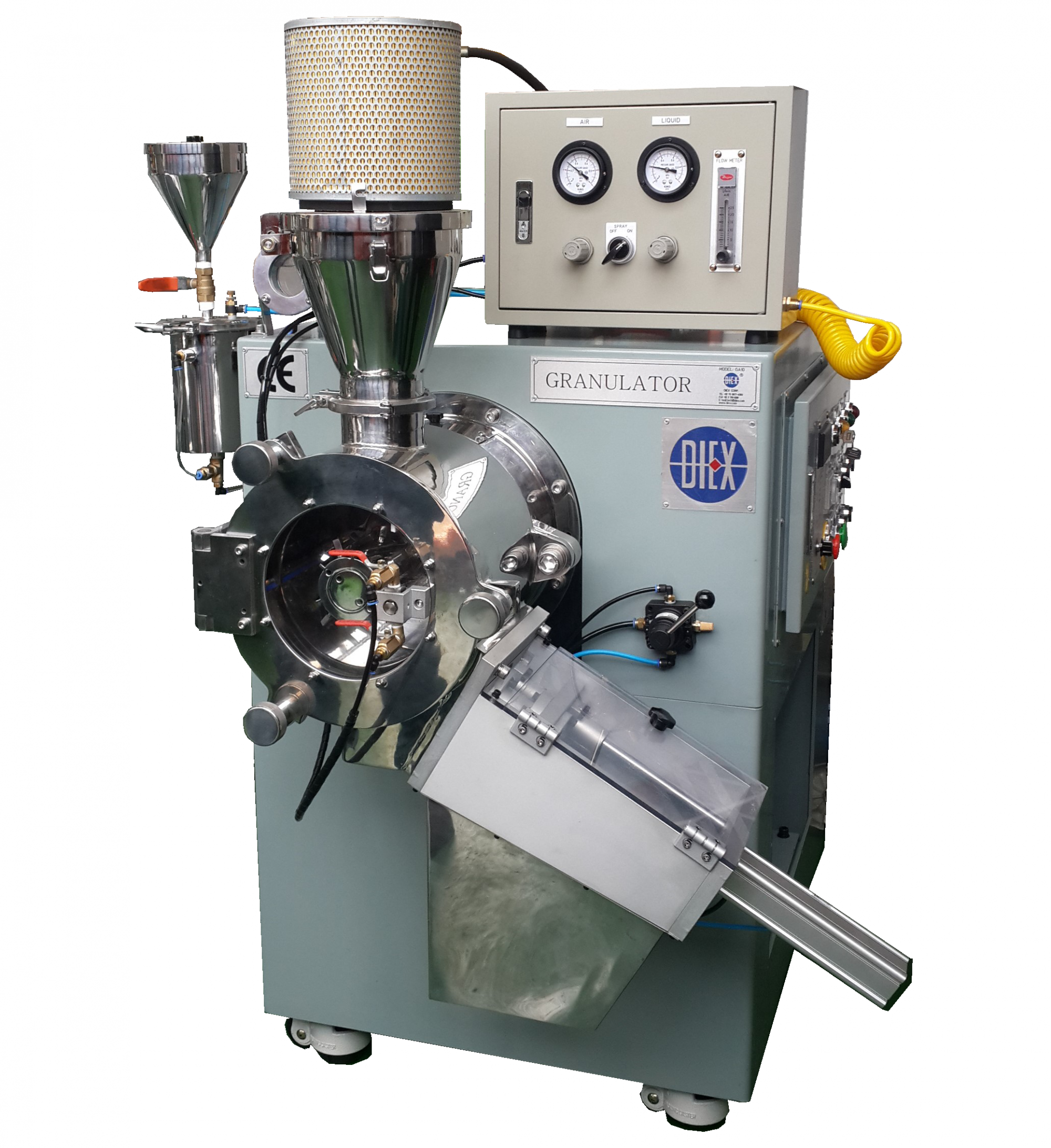

POWDER GRANULATOR / MODEL NO. GA10
This machine is specially designed to granulate metal powder to obtain regular spherical shapes of granulated powder which has high fluidity for volumetric weighing of segments to be cold pressed in auto way
This machine is specially designed to granulate metal powder to obtain regular spherical shapes of granulated powder which has high fluidity for volumetric weighing of segments to be cold pressed.
MACHINE FEATURES
- CORRECT SIZE DISTRIBUTION WITH SHEPHERICAL SHAPE AND FLUDITY.
- HIGH YIELD (80-90% WITHIN 0.1-0.5MM)
- IT IS POSSIBLE TO ADJUST DIAMETER OF GRANUL.
- HIGH SPEED MIXING & GRANULATION.
- COMPACT HIGH TECH ORIENTED MACHINE WITH SMALL VOLUME.
TECHNICAL DATA
NOTE
This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
