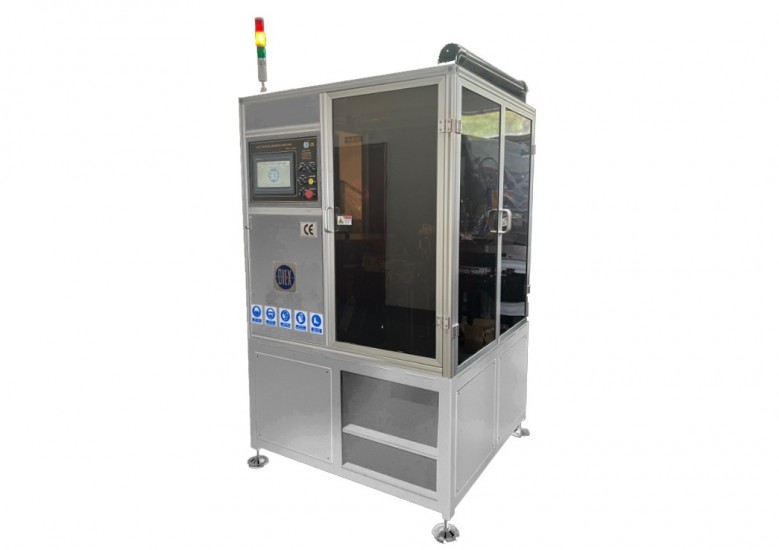

AUTO RADIUS GRINDING MACHINE :RGA20
This automatic radius grinding machine for laser segment is designed to perform precise grinding of segment radius automatically with a grinding wheel.

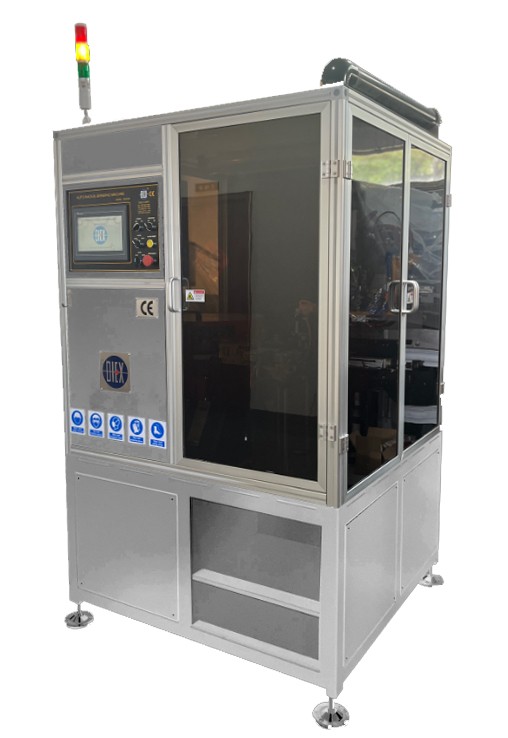

Auto Radius Grinding Machine for laser segement Model. RGA20
This automatic radius grinding machine for laser segments is designed to perform precise grinding of segment radius
AUTOMATICALLY with a grinding paper
Technical Feature
- AUTOMATIC SEGMENT FEEDING DEVICE
- AVAILABLE TO SET SEGMENT NUMBER TO GRIND
- MOVING GRINDING PAPER POSITION BY VERTICAL WAY
Technical Data
|
- MODEL : |
RGA20 |
|
- POWER SUPPLY : |
380/220 VOLT, 3Phases, 50/60Hz |
|
- MAX POWER CONSUMPTION |
2KW |
|
- AIR PRESSURE : |
4~6 Bar |
|
- WORKING RANGE : |
4" - 24"(upon request we can extend up to 40" as option) |
|
- GRINDABLE SEGMENT SIZE : |
L 50mm (max) x T 4mm (max) x W 10mm (Segment dimension could be changed upon request as option) May need extra bowl feeder as option |
|
- GRINDING PAPER ROTATION SPEED |
700 - 1,750RPM |
|
- STROKE OF GRINDING PART : |
150mm |
|
-PRODUCTIVITY: |
Approx.9,600 Seg/8 Hours (3~5 Sec/Seg for feeding+grinding+unloading) from 4~24 inch based on segment dimension & type |
|
- OVERALL DIMENSIONS : |
L: 1,000 x W: 1,000 X H: 1720mm |
|
- WEIGHT(INDICATIVE) : |
Approx. 450KG |
|
- Different segment need Different Radius mold(option items) |
|

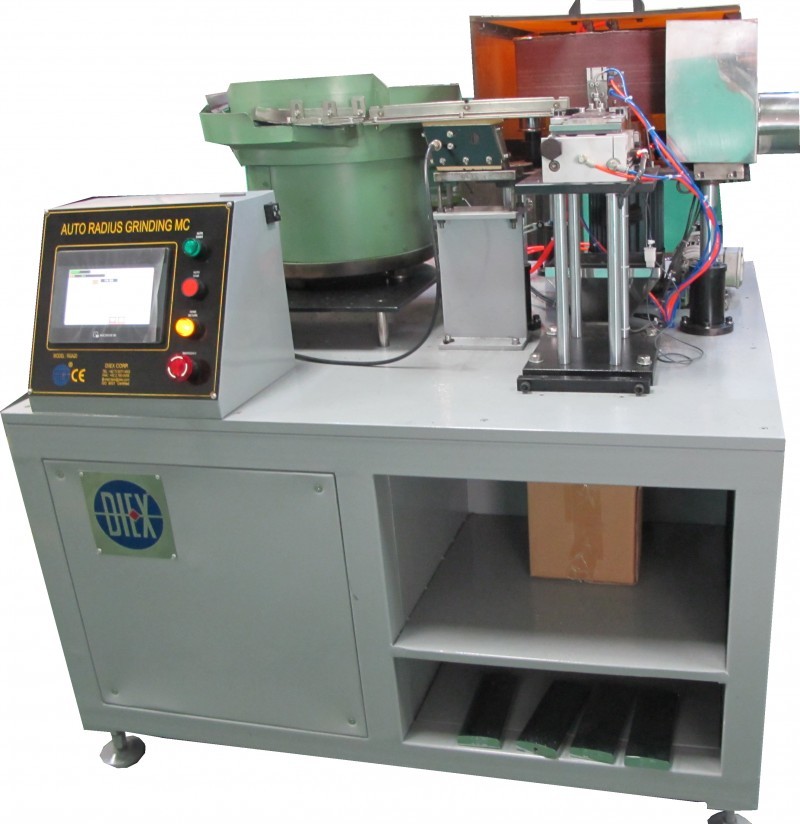

Auto Radius Grinding Machine for laser segment & core drill segment
Model:RGA20S
This automatic radius grinding machine for laser & core drill segments is designed to perform precise grinding
of segment radius AUTOMATICALLY with a grinding paper, changing Radius Mold
- AUTOMATIC SEGMENT FEEDING DEVICE
- AVAILABLE TO SET SEGMENT NUMBER TO GRIND
- MOVING GRINDING PAPER POSITION BY VERTICAL WAY
TECHNICAL DATA
- MODEL :RGA20S
- POWER SUPPLY :380/220 VOLT, 3Phases, 50/60Hz
- MAX POWER CONSUMPTION : 2kw
- AIR PRESSURE : 4 - 6 BAR
- WORKING RANGE : 4" - 24"(upon request we can extend up to 40" as option)
- GRINDABLE SEGMENT SIZE :L 50mm (max) x T 4mm (max) x W 10mm
(Segment dimension could be changed upon request as option) may need extra bowl feeder as option
- GRINDING PAPER ROTATION SPEED : 700 - 1,750 RPM
- STROKE OF GRINDING PART : 150mm
-PRODUCTIVITY: approx.9,600 Seg/8 Hours
(3~5 Sec/Seg for feeding+grinding+unloading) from 4~24 inch based on segment dimension & type
- OVERALL DIMENSIONS : Length: 1,000 Width : 1,000 Height : 1720 mm
- WEIGHT(INDICATIVE) : Approx 450 KG
- Different segment need Different Radius mold(option items)
NOTE
* PERFORMANCE INFORMATION MAY BE USED ONLY AS GUIDE FOR PRODUCTION CAPACITY ESTIMATION OF GRINDING
MACHINE.
* CALCULATION OF ABOVE GRINDING, DRESSING, AND STEEL CLEANING TIME ARE WITH NOMINATED ABRASIVE GRINDING
WHEELS ON COBALT BASED MATRIX SEGMENTS.
