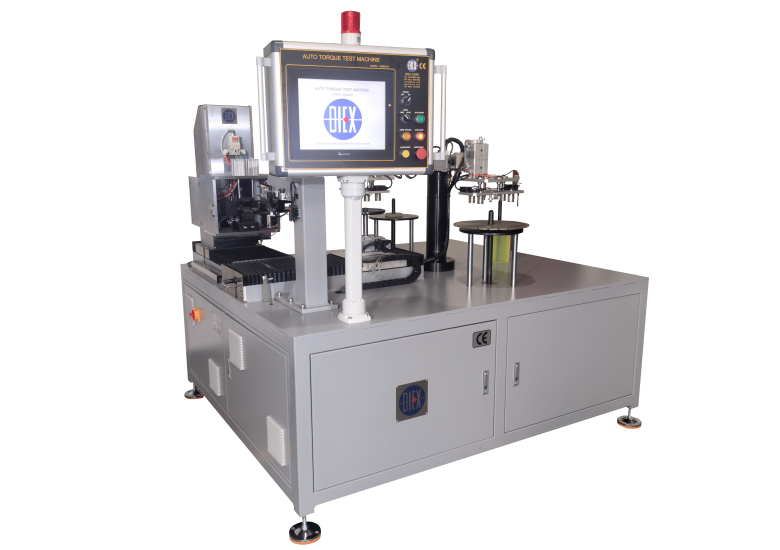

AUTO TORQUE TEST MACHINE : AWB4/24
Fully automatic station for testing welded joint strength for laser or brazed welded blades according to the European quality and safety standards(OSA Standard)

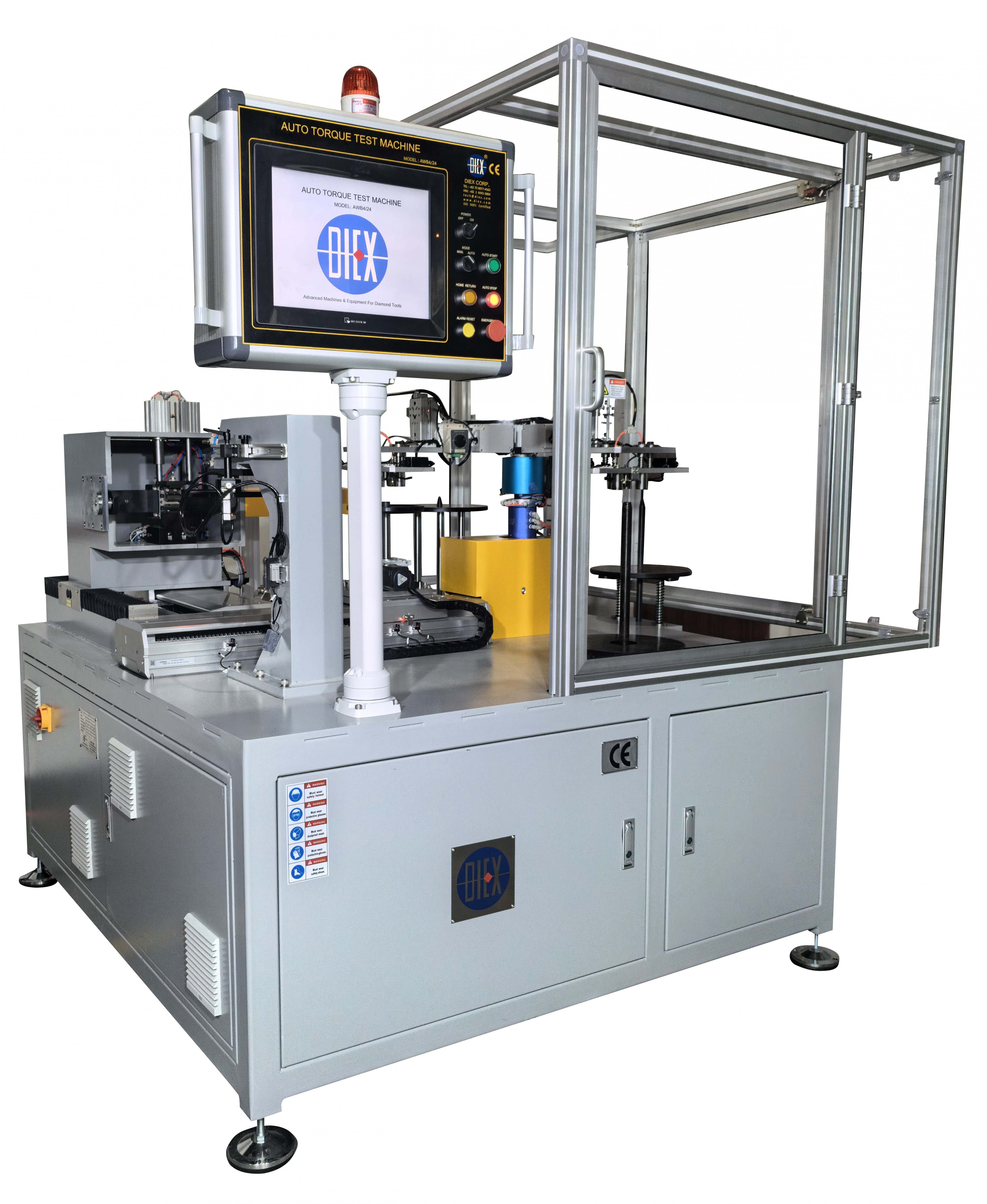

Auto Welding Torque Test Machine / MODEL:AWB4/24
Fully automatic station for testing welded joint strength for laser or brazed welded blades according to the European quality and safety standards(OSA Standard)
MACHINE FEATURES
-
Prearrangement for Disk Loading / Unloading
-
Spindle features automatic shank clamping;
-
Torque unit is rotating applies pure momentum around welded joint center line, torque is applied by two cylinder applying torque to a saddle that is purposely tilting around joint center line while shank area nearby the joint is clamped and held still;
-
Torque unit features a rotating saddle and a jaw assembly that
-
has a target slot slightly larger than segment thickness;
-
Disk segments engages inside Torque jaws via dedicated short stroke radial movement :
-
X movement of the spindle assembly via pneumatic slide;
Y movement of the torque unit via pneumatic slide -
Spindle rotation speed adjustable via inverter

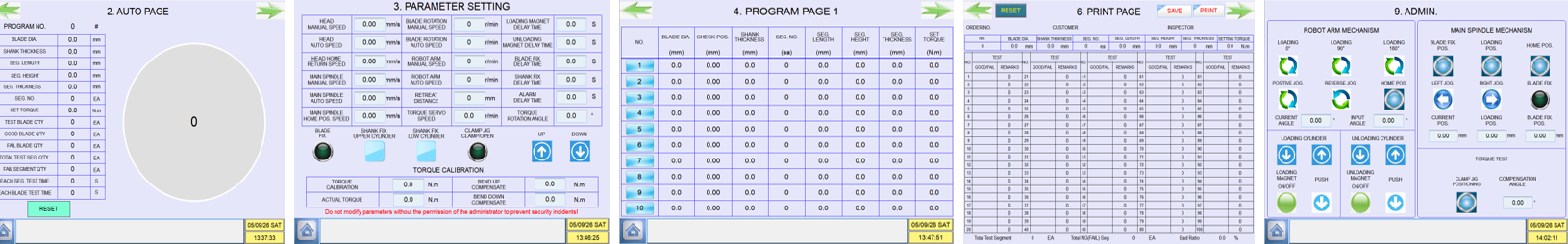

TECHNICAL DATA
